Q1. What is IRUV Cut Coat H-SC?

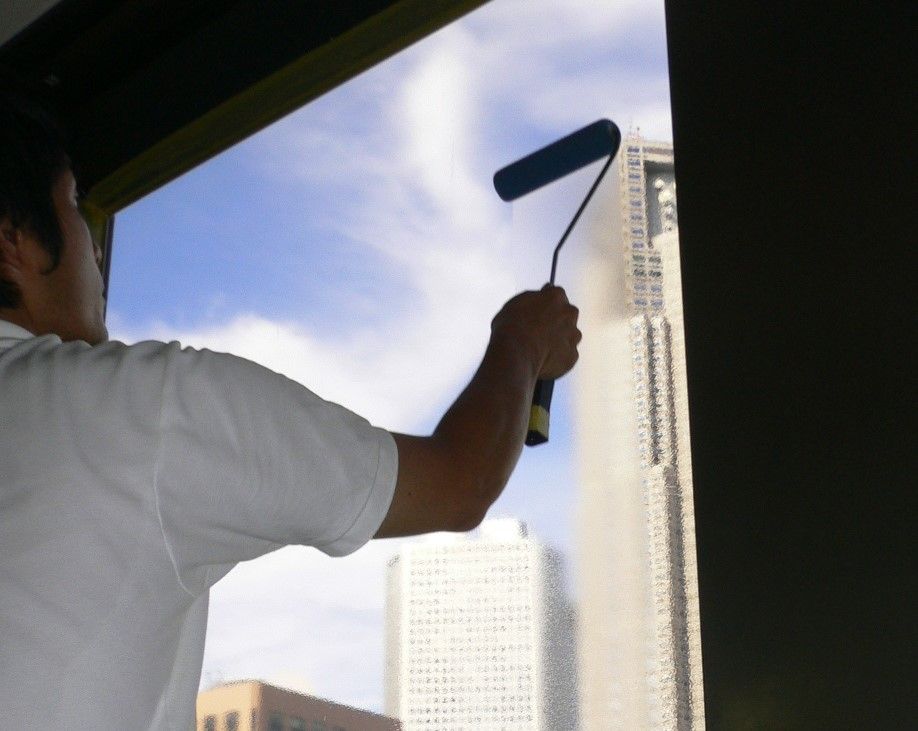

The IRUV Cut Coat is a liquid coating applied by roller application that improves the heat shielding performance of glass windows. It is composed of a triad structure: using nano particles to block infrared rays, ultraviolet absorbers to cut UV rays, and pure acrylic resin to form a transparent, durable layer. The coating film thickness is about 10 microns, which is significantly thinner than conventional window film (50 microns or more).

Q2. What are the key performance benefits of the IRUV Cut Coat?

IRUV Cut Coat H-SC specializes in infrared (heat) and UV blocking:

• Near Infrared (Heat) Cut Rate: Increases near-infrared cut rate by approximately 90% or more. It reduces direct solar heat during summer by approximately 8℃ to 15℃.
• UV Blocking: Achieves 99% UV-Rays blocked. This prevents fading and deterioration of merchandise, flooring, and interior fixtures.
• Condensation Suppression: Provides condensation suppression, reducing condensation by 50%. The time taken for water to start dripping is significantly longer on coated glass (104 minutes) than on uncoated glass (30 minutes).
• Durability: It has a practical durability of 15 years or more.

Q3. How does IRUV Cut Coat compare to conventional Window Film?

The IRUV Cut Coat offers several advantages over traditional window film:

Q5. How much energy can I save?

Applying IRUV Cut Coat improves cooling performance, potentially allowing you to raise the air conditioner temperature setting by 2–3°C.

• Raising the setting by 1℃ typically results in about 10% energy savings on air conditioning costs
• A 3°C adjustment in the temperature setting results in about 30% expected energy savings on air conditioning costs
• It is important to note that the 20–30% reduction is only an expected value for air conditioning costs, not a guaranteed figure for the total electricity bill

Q9. Is there an odor during application?

Yes, the application process involves a distinct solvent odor similar to paint thinner or nail polish remover.

• If windows can be fully opened, the odor usually dissipates within 2–3 hours after the surface dries
• If windows cannot be opened, the odor may remain until the next day
• People sensitive to odors, children, and pets should leave the room until the smell is completely gone

Q10. What are the environmental restrictions for application?

Application conditions are strict to ensure a high-quality finish:

• Temperature/Sunlight: Coating cannot be applied during periods of strong direct sunlight. If the glass surface temperature exceeds 35°C, high temperatures can cause the coating to dry too quickly
• Wind/Airflow: Any devices that create air circulation (AC, fans, air purifiers) must be turned off until surface drying is complete
• Condensation: Application is impossible if condensation is present on the glass

Q15. How long is the curing time, and when can I touch or clean the glass?

The coating must fully cure to achieve maximum hardness:

• Initial Drying: Do not touch the window glass for about 2 days after coating
• Full Curing: Full hardening takes approximately 10 days in midsummer and about 1 month in midwinter
• Cleaning: Regular cleaning should not be performed before full curing. Wait at least one month after application

Q16. How should I clean the coated glass?

Use wet cleaning methods only:

• Recommended: Wash with water or wipe with a soft cloth using a diluted neutral detergent
• Prohibited: Do not use abrasive or hard brushes or scrapers. Do not use general glass cleaning products, alcohol-based cleaners, alkaline detergents, or acidic cleaners

Q18. What does the 10-year warranty cover?

The IRUV Cut Coat comes with a 10-year reapplication warranty.

• This warranty is a workmanship warranty provided by the contractor who carried out the application, not the material supplier (Sketch)
• If natural deterioration such as peeling, clouding (hazing), or yellowing occurs within 10 years after application, the defective section will be removed and reapplied free of charge

Q19. What is excluded from the warranty?

The warranty does not apply to the following cases:

• Damage caused by the customer's own fault or using prohibited cleaning products
• Damage or peeling due to natural disasters
• Application over an existing window film, or if a new film is applied after the coating
• Exterior applications
• Damage caused by stickers, decals, or strong adhesives applied to the coated surface
• Glass replacement or reapplication due to thermal cracking (Wired glass is particularly susceptible)
• The warranty does not guarantee the heat-shielding or thermal-insulation performance
